Truck and trailer container twist locks

Basic Info

Customized: Customized

Certification: ISO14001, ISO9001

Type: Other

Additional Info

Packaging: Export standard packing

Productivity: 500tons per month

Transportation: Ocean,Air

Place of Origin: CHINA

Supply Ability: 500tons per month

Certificate: ISO SGS

Port: Tianjin

Product Description

Name: twist locks for container trailer

Application: trailer parts

Material: casting steel

Weight: 7.50KGS/10.50KGS/15.5KGS

Finish: Black Oxide Primer

Color: Red, Black, Orange

1. Prodcut Informtion:

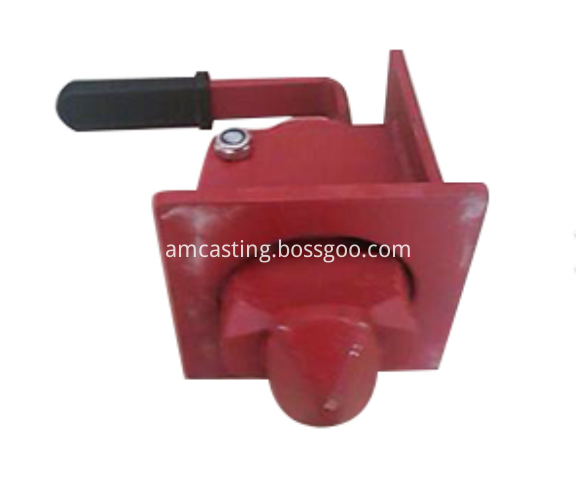

ISO twist locks for container trailer: Europe Type(Heavy one), Europe Type(Light one) and ISO Type. They are all is welded on trailer chassis and connecting container corner to fix container on the trailer.

Especially Europe Types, they are all comprised of housing, locking pin, locking pin guide, outer guide, distance ring, locknut, security ring, security latch and pin. And is retractable and welded on trailer chassis, it is very popular in Europe.

ISO Type is comprised of Pin knob, Spacer, Twist Handel, Nut, Fabrication Body and Spring Steel clip.

2. Product Specifications:

ISO twist locks for container trailer:

Type: Europe Type Standard Type

Heavy One Light One ---

Weight: 15.50kgs 10.50kgs 7.5kgs

Max load 34000kgs 30500kgs 30500kgs

Lock pin Ø52mm Ø38mm ---

Materials: Casting steel / Iron

Standard: Meet ISO/TS16949:2002

Purpose: Designed to secure ISO containers and special containers to any type of trailer.

Finish: Black Oxide Primer/Red ,Black, Orange color

We have a wide selection at great prices to help you get creative. All the Lost Wax Casting Parts are quality guaranteed.

We are China Origin Factory of Silica Sol Castings. If you have any question, please feel free to contact us.
